Thank You For Growing With Us
After an incredible journey, Annaboto has stopped operations. But your grow doesn't have to stop. We built something special, and we want to make sure you can keep growing for as long as your Annaboto runs.
Build Your Own Nutrient Cartridge
Keep your grows going with DIY cartridges. Everything you need — instructions, parts, and 3D-printable files.
Instructions
Step-by-step guide to assembling your own nutrient cartridge.
- Fill a pouch with approximately 100 ml of Flora Bloom and then use the cap that comes with the pouches to close the pouch. Set aside.

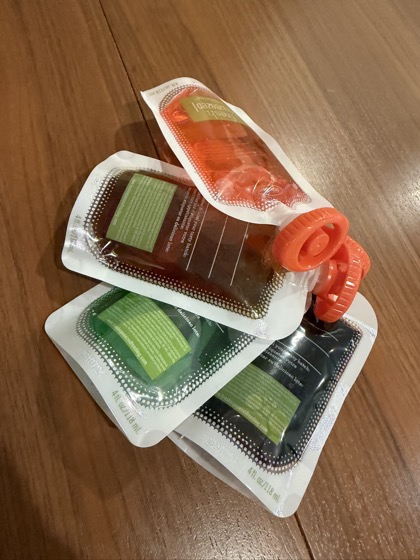

- Repeat for Micro, Grow, and CalMag nutrients so that each of the 4 pouches has 100 ml of each of the 4 nutrients.

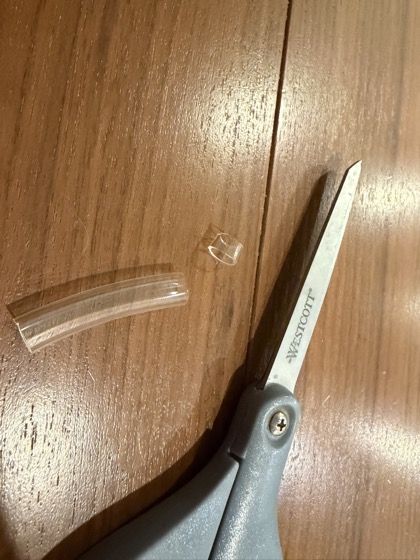

- Cut the tubing to roughly 1/4 of an inch.

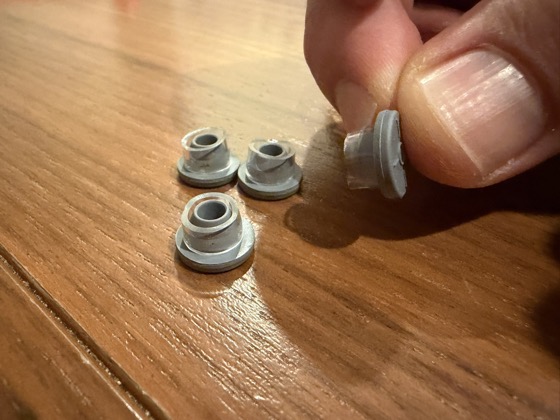

- Insert a Rubber Stopper into the tubing length to use the tubing as a sleeve.

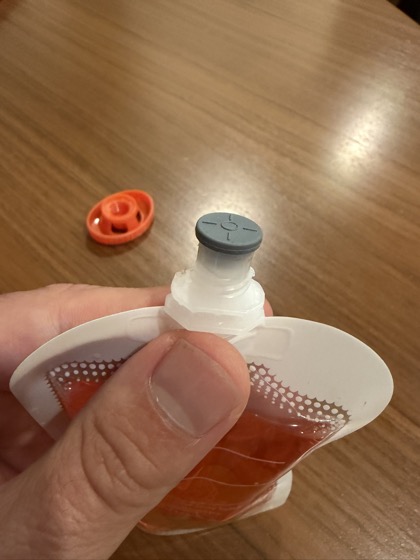

- Open the pouches by removing the caps and insert the Rubber Stopper with Sleeve.

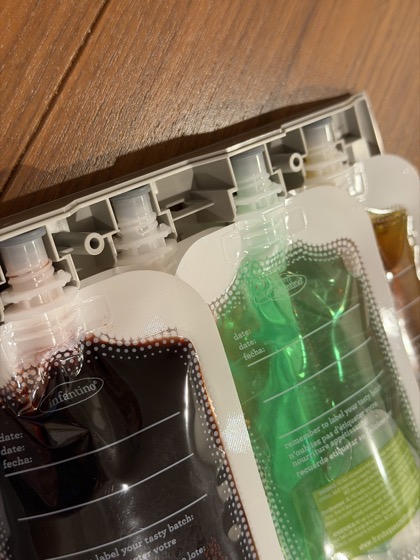

- Insert the pouches into the Cartridge as displayed in the PDF Design Drawing. Start with the two in the bottom followed by the two on the top.

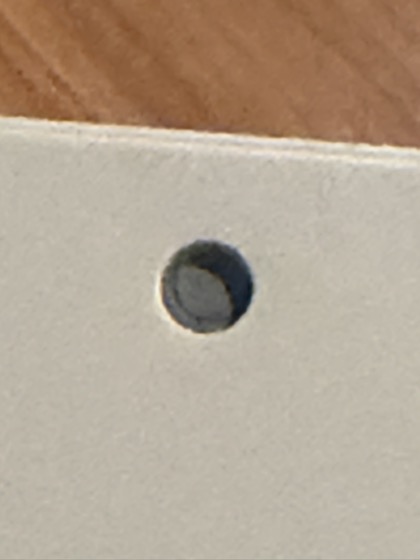

- Make sure the circles on the Rubber Stopper are visible on the holes of the cartridge. If not, align carefully.
- Tuck the outer pouches, and assemble the other Cartridge part.
- Press firmly on the clipping points so the cartridge gets fully assembled.

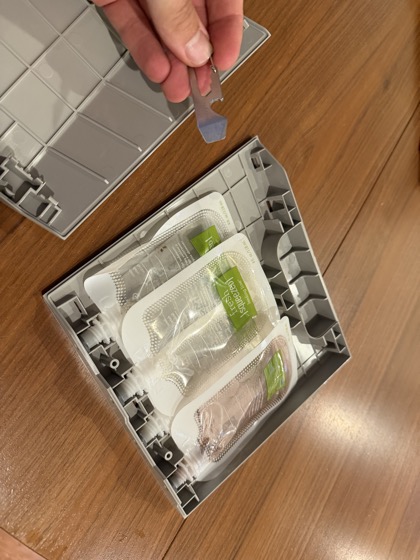

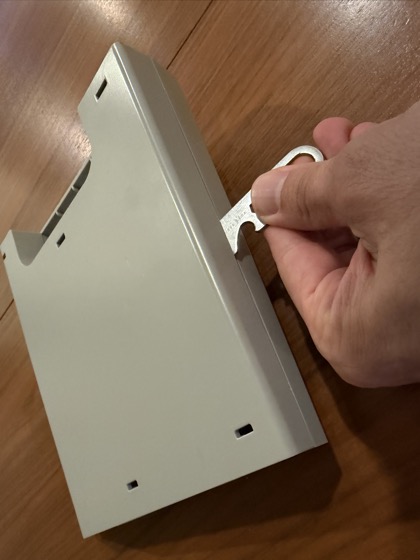

- To reuse the cartridge, insert a flat surface (e.g. wide flathead screwdriver) in the half to pry it open. To pry open more easily, carefully move the flat surface inside the cartridge to make sure the interface points snap off. Remove old pouches and repeat steps 1–9.
Parts List
All components available on Amazon. Click to purchase.
3D Print Files (STEP)
Print the cartridge housing at home. Download the STEP files and convert/slice for your printer.
- nutrient_cartridge_front.step ⬇ Download
- nutrient_cartridge_back.step ⬇ Download
Recommended: PLA or ABS filament, 0.2mm layer height, 80% infill
Build Your Own Grow Pod Components
Replace worn parts or build spares. Your Annaboto was designed to last — these resources help you keep it going.
Instructions
How to set up and replace grow pod components.
- Print or reuse an old plastic pod, but clean it with warm water and soap.
- Insert the grow medium with the hole on the top.
- Insert a seed in the hole.
- Place some clay pebbles on the top of the sponge.
- Place Humidity dome on top of the pebbles.
- Start a grow!
Reference Diagrams
Print to see assembly images
Parts List
Replacement components available on Amazon.
3D Print Files (STEP)
Print the grow pod at home. Download the STEP file and convert/slice for your printer.
- grow_pod.step ⬇ Download
Recommended: PLA or ABS filament, 0.2mm layer height, 100% infill for water resistance
Support & Knowledge Base
Browse our full library of help articles. Find answers to common questions, troubleshooting guides, and growing tips.
